Australian racking specialists, providing leading racking services and products meeting all Australian Standards. Our racking supplies, like pallet racking, which includes selective, double deep, drive in and narrow aisle racking , as well as cantilever racking, are available in new or second hand.
Contact Us

Pallet Racking

Selecting the correct pallet racking system to suit your individual requirements will provide you a safe, efficient and cost effective solution.

Industor pallet racking systems have been designed and tested in Australia to fully comply with Australian Standard 4084-2012 and meet structural analysis requirements while satisfying other standards.

The extensive adjustability and range of optional components ensures we can supply an individual solution to store your products for operational efficiency.

Qualified rack inspectors ensure that your warehouse racking stays compliant with government and insurance underwriter requirements with mandatory annual inspections.

Pallet Racking by Location

Pallet Racking Components

Frame HeightFrame Depths
914mm457/610/838/1219mm
1219mm457/610/838/1219mm
2438mm457/610/838/1219mm
3048mm610/838/1219mm
3658mm610/838/1219mm
4267mm610/838/1219mm
4877mm610/838/1219mm
6096mm610/838/1219mm
Beam LengthBeam Section
1372mm80x40mm
1524mm80x40mm
2591mm80×40, 100/120x50mm
2743mm80×40, 100/120x50mm
3048mm110x50mm
3350mm120x50mm
3810mm130x50mm

Pallet Racking Types

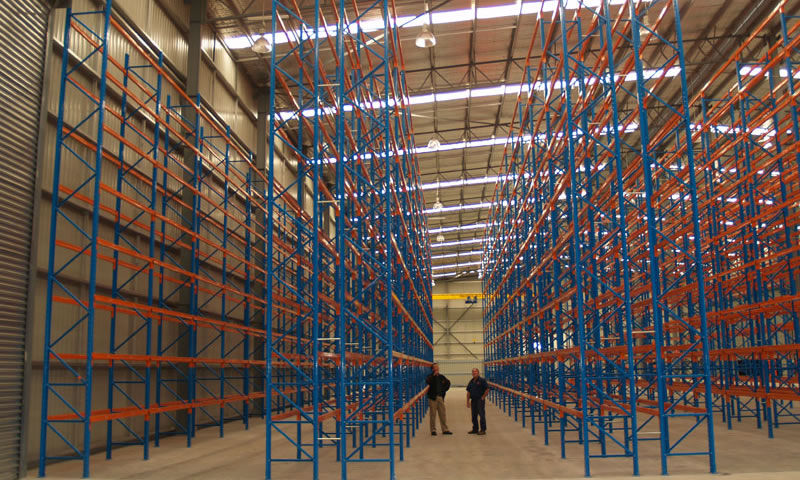

Selective Racking

Selective Racking Systems

Selective racking is the most common pallet storing system used today. Selective racking systems typically come in either a clip-in style (Teardrop) or a structural bolt-together style. Selective pallet racking is very adaptable, providing high capacity storage and simple access to all pallets.

  • 100% immediate accessibility
  • 40% floor utilisation*
  • Good stock rotation
  • Infinitely adjustable
  • Accessories available

Selective racking is predominately used in the industrial, warehousing, retail, agricultural and mining sectors, due to their versatility and durability under even the heaviest loads. The open design makes for good stock rotation and inventory control.

Drive In Racking

Drive In Racking

Drive In Racking Systems

Drive In racking is designed to allow each pallet to be placed so they can slide backwards on a rail, hence storing them more deeply and creating more space in the warehouse. Drive-In Racking is for high volume storage that involve the forklift entering the racking from one side to load or retrieve the pallets.

  • 25% immediate accessibility
  • 65% floor utilisation*
  • Limited stock rotation
  • High density system

Drive In pallet racking systems are most suitable for businesses that have minimal Stock Keeping Units but, have high pallet quantities. Drive In pallet racking is widely used in the agriculture, manufacturing and food processing sectors for storing large volumes of goods.

Narrow Aisle Racking

Narrow Aisle Racking

Narrow Aisle Racking Systems

Narrow Aisle racking is designed to maximise space within your warehousing or storage facility. It allows maximum storage capacity, and quick order-picking with rapid accessibility to every pallet.

  • 100% immediate accessibility
  • 45% floor utilisation*
  • Good stock rotation
  • Stock picking system

Narrow Aisle pallet racking systems are compact and are used in a wide variety of industrial, mining, pick and pack, and retail industries where warehousing space is limited. Narrow Aisle works well with automated stock picking equipment.

Double Deep Racking

Double Deep Racking

Double Deep Racking Systems

Double Deep racking is designed to offer a good balance between storage density and product accessibility. Double Deep racking allows the placing of two pallets deep, in each aisle, which can increase your storage capacity by up to 60% in comparison with standard racking.

  • 50% immediate accessibility
  • 60% floor utilisation*
  • Average stock rotation
  • Reach truck operation

Double Deep pallet racking systems are best utilised when each Stock Keeping Units have several pallets. Half of your stored pallet units are immediately accessible on a first In, last out basis. The use of a reach truck or a forklift with long extensions are generally required.

Pushback Racking

Push Back Racking

Pushback Racking Systems

Pushback racking is designed to offer high density storage with rapid product accessibility. Pushback racking allows the placing of up to six pallets deep, in each aisle, which can increase your storage capacity by up to 65% in comparison with conventional racking.

  • 25% immediate accessibility
  • 65% floor utilisation*
  • Moderate stock rotation
  • High density system

Pushback pallet racking is best utilised when each Stock Keeping Units have at least two to six pallets. Up to 50% of your stored pallet units are immediately accessible on a first In, last out basis. As a pallet is removed from the face of the racking, all the other pallet units move forward bringing another pallet unit to the face of the racking for easy access.

Cable Racking

Cable Racking

Cable Racking Systems

Cable racking is designed to offer rapid product accessibility and retrieval. Cable racking is purpose built to carry, or horizontally store, cables on drums or spindles.

  • 100% immediate accessibility
  • 40% floor utilisation*
  • Cable drums up to 2000kg
  • High density system

Cable racking systems are most suitable for businesses that have a need to keep their cable drums off the ground hence maximising storage space within your workplace. Cable racking is widely used to store coiled products like rope, cord, chain and electrical cables.

Cantilever Racking

Selecting the correct cantilever racking system to suit your individual requirements will provide you a safe, efficient and cost effective solution.

Cantilever racking comes in a range of light, medium and heavy duty systems which can be powder coated and galvanised. Cantilever racking gives you easily adjustable storage levels which have been designed and tested in Australia to fully comply with Australian Standard 4084-2012 and meet structural analysis requirements while satisfying other standards.

Light Duty Cantilever

Light Duty Cantilever Racking

Light Duty Cantilever Racking

Light duty cantilever racking is ideal to carry lightweight goods reliably. When purchasing cantilever from Industor, you will find that we can design, supply and install, affordable cantilever racking systems.

  • AS 4084-2012
  • 100% immediate accessibility
  • 40% floor utilisation*
  • Good stock rotation
  • Infinitely adjustable
  • Accessories available

Industor’s light duty cantilever racking is commonly used by a range of industrial companies and is ideal to carry oversized products and odd shapes like tubing

Medium Duty Cantilever

Medium Duty Cantilever Racking

Medium Duty Cantilever Racking

Medium duty cantilever racking is ideal to carry midweight goods reliably. When purchasing cantilever from Industor, you will find that we can design, supply and install, affordable cantilever racking systems.

  • AS 4084-2012
  • 100% immediate accessibility
  • 40% floor utilisation*
  • Good stock rotation
  • Infinitely adjustable
  • Accessories available

Industor’s medium duty cantilever racking is commonly used by a range of industrial companies and is ideal to carry oversized products and odd shapes like timber planks

Heavy Duty Cantilever

Heavy Duty Cantilever Racking

Heavy Duty Cantilever Racking

Heavy duty cantilever racking is ideal to carry heavy products reliably. When purchasing cantilever from Industor, you will find that we can design, supply and install, affordable cantilever racking systems.

  • AS 4084-2012
  • 100% immediate accessibility
  • 40% floor utilisation*
  • Good stock rotation
  • Infinitely adjustable
  • Accessories available

Industor’s heavy duty cantilever racking is commonly used by a range of heavy industrial companies and is ideal to carry oversized products and odd shapes like steel and aluminium sheeting and steel rods

Other Available Racking Types

  • Shuttle racking
  • Drive-through racking
  • Flow through racking
  • Conduit racking
  • Coil racking
  • Tyre racking
  • Carpet racking
  • Furniture racking

Quick Quote

    Our Clients

    Download Our Racking Catalogue

    View & Download Catalogue

    Rack Protection

    • Column guards
    • Corner guards
    • End rack barriers
    • Floor channels
    • Rack Armour
    • Protect-Its
    • Visipro upright guard

    Racking Options

    • Timber shelf insert
    • Mesh deck inserts
    • Coil bracket
    • Drum bracket
    • SWL/Maintenance sign
    • Heavy duty base plates
    • FTB support
    • Fork entry bar
    • Hang bar
    • Tyre support insert
    • Mesh fall arrest backing
    • Gasket shelves
    • Pallet back stops
    • Pigeon hole systems
    • Packing bench shelf unit
    • Galvanised finish
